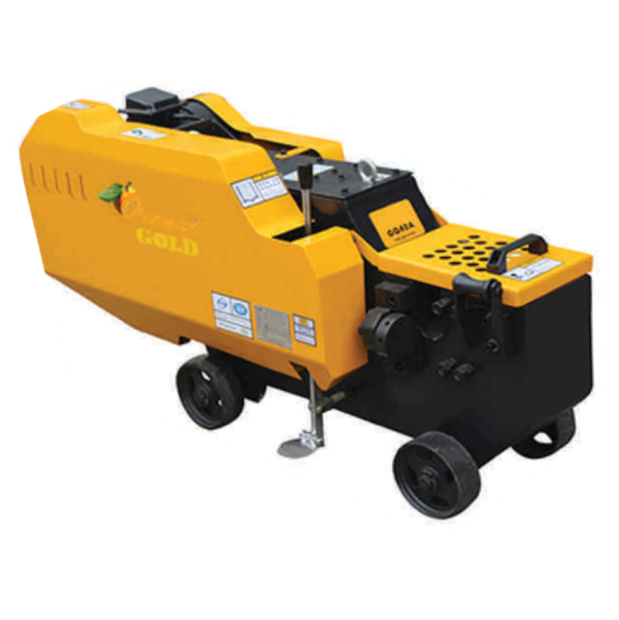

Orange Bar Cutting Machine C-40 / GQ-40 – 6 to 32 MM

Description

Bar Cutting Machine C-40 / GQ-40 Product Specifications

• Color Yellow
• Cutting Function Full Automatic
• Product Type Orange Gute Bar Cutting Machine C-40 / GQ-40 (up-to 32mm)
• Warranty Yes (Manufacturing Defect)
• Voltage 415 Volt (v)
• Blade Size 83*83*26
• Motor 5 Hp 2 Ph
• Motor Power  5Hp2P415V 2880 RPM Hindustan  Eltek
• Cutting Time  Min  32
• Oil  7 Liter Extra
• LBH  1280 X 460 X 700mm
• Weight  400 Kg
• Capability Chart for II Grade Rebar Steel Cutting Machine
• Suitable For Tensile Strength 550 Fe TMT
• All 8 Sides usable of Blade
• Starter  Seimens  Havells 5Hp
• 4 M S Wheels for Movement

Key Features

High Cutting Efficiency The TMT Bar Cutting Machine delivers fast and precise cuts allowing for quick processing of TMT bars thus enhancing overall productivity

Durable Construction Built with high quality materials the machine is designed to endure the demanding conditions of construction sites offering long-term durability and performance

Powerful Motor Equipped with a powerful motor it ensures smooth operation even with thicker TMT bars making it suitable for a wide range of cutting tasks

Adjustable Cutting Capacity The machine provides flexibility with adjustable cutting capacities to accommodate different sizes and thicknesses of TMT bars

User Friendly Design Easy to operate the machine comes with simple controls making it accessible to operators with varying levels of experience

Safety Features It is designed with built-in safety mechanisms to protect operators from potential hazards during operation ensuring safe usage at all times

Low Maintenance The robust design requires minimal maintenance which reduces downtime and lowers operational costs

Portable and Compact Despite its heavy duty capabilities the machines compact size makes it easy to transport and position at various spots on the construction site

Applications

Ideal for cutting TMT bars in construction projects including buildings roads bridges and other infrastructure works

Suitable for both small scale and largescale construction applications

Used in reinforcement for concrete structures ensuring the bars are cut to the required lengths and sizes for various purposes
