Description
The ABLE AVC 40 (5T) Compactor is engineered for tough compaction jobs in road construction, foundations, and civil engineering projects. With a high impact force of 3000 kg and a depth effect of 12 inches, it ensures strong and uniform compaction.
Equipped with dual power options (diesel or 3-phase electric motor), this versatile machine provides flexibility for different site requirements. Its forward travel design and heavy-duty steel plate make it reliable and durable for long-term use.
Orange Able AVC 40 5 Ton Compactor, Diesel and Electric 5Hp Specifications

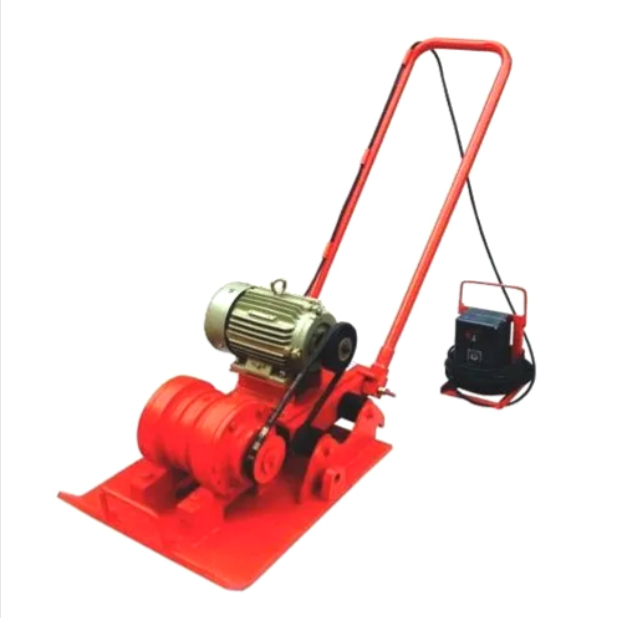

Electric Motor specification
| Model – Orange Able  AVC 40 (5T) Compactor |
| Compaction Capacity – 5 Ton |
| Imapct Force (Appr.) – 3000 kg. |
| Vibration Frequency (Appr.) – 2000 p/min. |
| Depth Effect Depending (upon type of Soil) – 12″ |
| Travel Speed – 65 ft. p/min. |
| Gradiant Capacity – 20% |
| Compaction Plate Size – 20″(L) X 27″(B) X 16mm Thickness |
| Working Area(Per Hour) – 5500 sq. ft. |
| Direction Of Trave – Forward |
| Drive – 5HP 3 Phase Hindustan Crompton Electric Motor |
| Starter – L/T Or Siemence Make |
| Trolley Wheels Available With Unit |
| 6Mtr Cable Supplied With Machine |
| Total Gross Weight – 180 kg. |

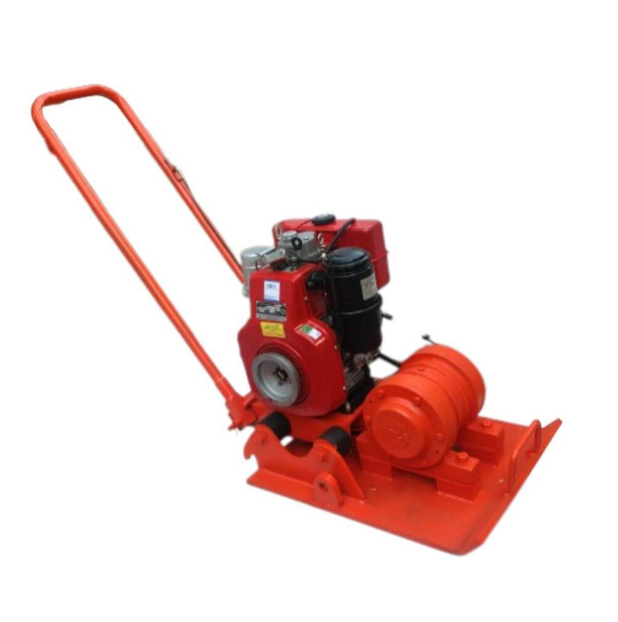

Diesel Motor specification
| Model –Orange Able AVC 40 (5T) Compactor |
| Compaction Capacity – 5 Ton |
| Imapct Force (Appr.) – 3000 kg. |
| Vibration Frequency (Appr.) – 2000 p/min. |
| Depth Effect Depending (upon type of Soil) – 12″ |
| Travel Speed – 65 ft. p/min. |
| Gradiant Capacity – 20% |
| Compaction Plate Size – 20″*(L) X 27″(B) X 16mm Thick |
| Working Area(Per Hour) – 5500 sq. ft. |
| Direction Of Trave – Forward |
| Drive – Greaves 5HP 1520 Diesel Engine Air Cooled |
| Wheels/Clutch Pulley/On/Off Attachment With Machine |
| Total Gross Weight – 220 kg. |
