Product Description:

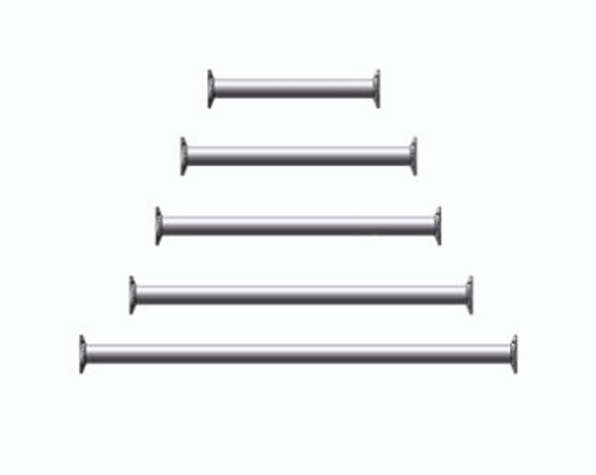

Our Cuplock Ledgers / Horizontals are manufactured using 40 NB light or medium range steel pipes with forged ledger blades welded at both ends. These ledgers provide essential horizontal support in the cuplock scaffolding system and are available in standard and customized sizes.
The length is measured from center-to-center of two verticals, ensuring accurate placement and alignment on-site. Known for their robust design, low maintenance, and durable finish, these ledgers are ideal for all types of construction projects — from residential to industrial.
Whether you’re assembling formwork, temporary structures, or complex access platforms, these cuplock horizontals provide the structural stability needed for safe and efficient work.
Technical Specifications:
| Size (m) | Length (mm) | Weight (kg) |
|---|---|---|
| 2.0 m | 1952 mm | 7.00 kg |
| 1.8 m | 1752 mm | 6.00 kg |
| 1.5 m | 1452 mm | 5.00 kg |
| 1.2 m | 1152 mm | 4.00 kg |
| 1.0 m | 952 mm | 3.50 kg |
| 0.9 m | 852 mm | 3.00 kg |
| 0.6 m | 552 mm | 2.50 kg |
-
Pipe Size: 40 NB (Light/Medium Range)
-
Blade Type: Forged Ledger Blades
-
Usage: Horizontal Support between Vertical Standards
-
Finish: Painted / Galvanized (on request)
-
Maintenance: Low
-
Design: Robust and Easy to Assemble
